Ikidodo / Gupakira robot SDCX RMD-300 / 200/160/120/35/08/110/20/50 Ishusho Yerekanwe

Kashe / Gushyira robot SDCX RMD-300 / 200/160/120/35/08/110/20/50

Intangiriro ngufi y'ibicuruzwa

Imashini ya kashe ikoreshwa cyane mugutondekanya, guta, gutwara no gutwara indi mirimo mubijyanye no gupakira, ibinyobwa, inganda zikora imiti, ibiryo, nibindi, biha abakoresha ibisubizo byuzuye byihuse, umutekano, byoroshye, byukuri kandi bihagaze neza.

TWANDIKIRE

Ibicuruzwa birambuye

Ibicuruzwa

Ibipimo bya tekiniki

Icyitegererezo No.	Impamyabumenyi y'ubwisanzure	Uburyo bwo gutwara	Kwishura （KG）	Gusubiramo umwanya neza (mm)	Urwego rwo kugenda (°)				Umuvuduko ntarengwa (° / s)				Kwemerera umutwaro inertia yintoki (kg · m²)	Gukubita uruziga (cycle / isaha)	Imirasire yimikorere (mm)	Uburemere bwaho （Kg）
Icyitegererezo No.	Impamyabumenyi y'ubwisanzure	Uburyo bwo gutwara	Kwishura （KG）	Gusubiramo umwanya neza (mm)	J1	J2	J3	J4	J1	J2	J3	J4	Kwemerera umutwaro inertia yintoki (kg · m²)	Gukubita uruziga (cycle / isaha)	Imirasire yimikorere (mm)	Uburemere bwaho （Kg）

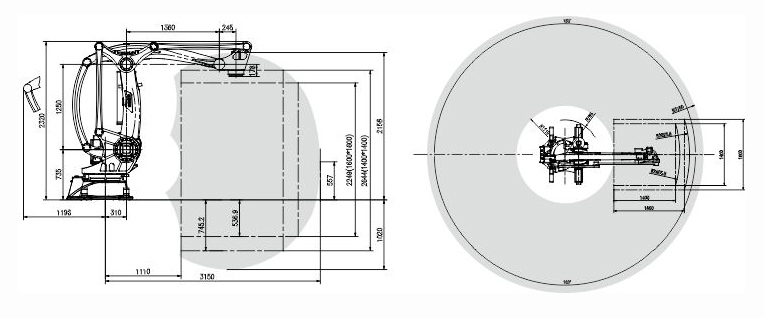

SDCX-RMD300	4	AC servo	300	± 0.5	± 180	± + 100 ~ -44	± + 121 ~ -15	± 360	85	90	100	190	134	1000^③	3150	1500
SDCX-RMD200	4	AC servo	200	± 0.3	± 180	± + 100 ~ -44	± + 121 ~ -15	± 360	105	107	114	242	78	1300^③	3150	1500
SDCX-RMD160	4	AC servo	160	± 0.3	± 180	± + 100 ~ -44	± + 121 ~ -15	± 360	123	123	128	300	78	1500^③	3150	1500
SDCX-RMD120	4	AC servo	120	± 0.3	± 180	± + 100 ~ -44	± + 121 ~ -15	± 360	128	126	135	300	78	1560^③	3150	1500

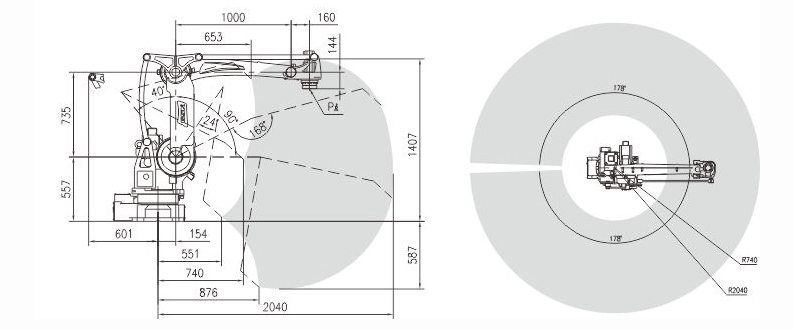

SDCX-RMD50	4	AC servo	50	± 0.2	± 178	± + 90 ~ -40	± + 65 ~ -78	± 360	171	171	171	222	4.5	1700^②	2040	660

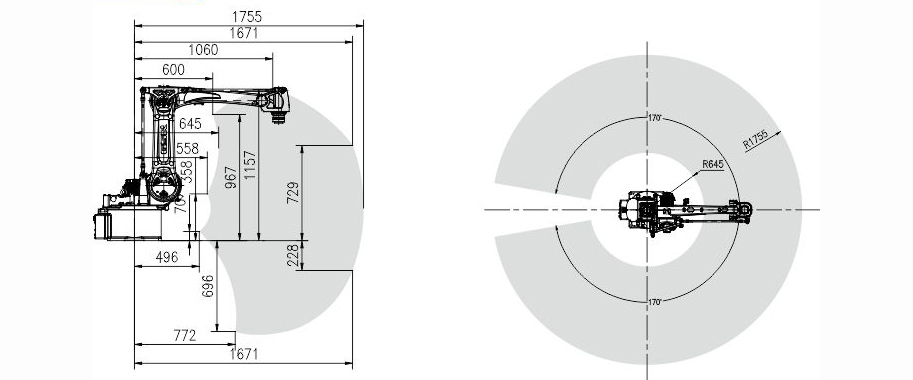

SDCX-RMD20	4	AC servo	20	± 0.08	± 1170	± + 115 ~ -25	± + 70 ~ -90	± 360	170	170	185	330	0.51	1780^①	1720	256

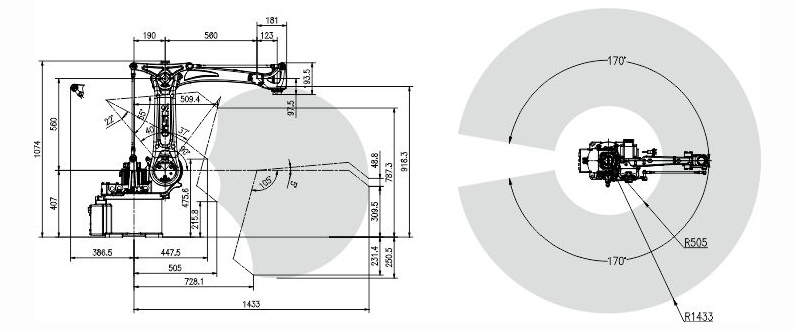

SDCX-RMD08	4	AC servo	8	± 0.08	± 170	± + 90 ~ -40	± + 68 ~ -90	± 360	251	195	195	367.5	0.25	1800^①	1433	180

Ijambo:

Track Ikizamini cyo gupima ni 150mm z'uburebure na 1000mm z'ubugari, kandi igihe cyizunguruka cyatewe nakazi keza;

Track Ikizamini cyo gupima ni 200mm z'uburebure na 1000mm z'ubugari, kandi igihe nyacyo cyizengurutswe nakazi keza;

Track Ikizamini cyo gupima ni 400mm z'uburebure na 2000mm z'ubugari, kandi igihe cyizenguruko kigira ingaruka kumikorere nyayo;

Irinde guhura na gaze yaka, iturika kandi ishobora kwangirika;Kora kugirango utanyanyagizwa n'amazi, amavuta n'umukungugu;Irinde amasoko y'urusaku rw'amashanyarazi (plasma)
